Electronic exploder ATLAS-300

ATLAS-300 is an electronic capacitor exploder, very compact sized and sturdy, designed for firing electric detonators.

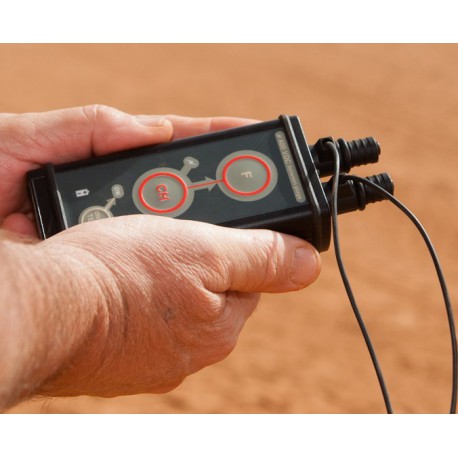

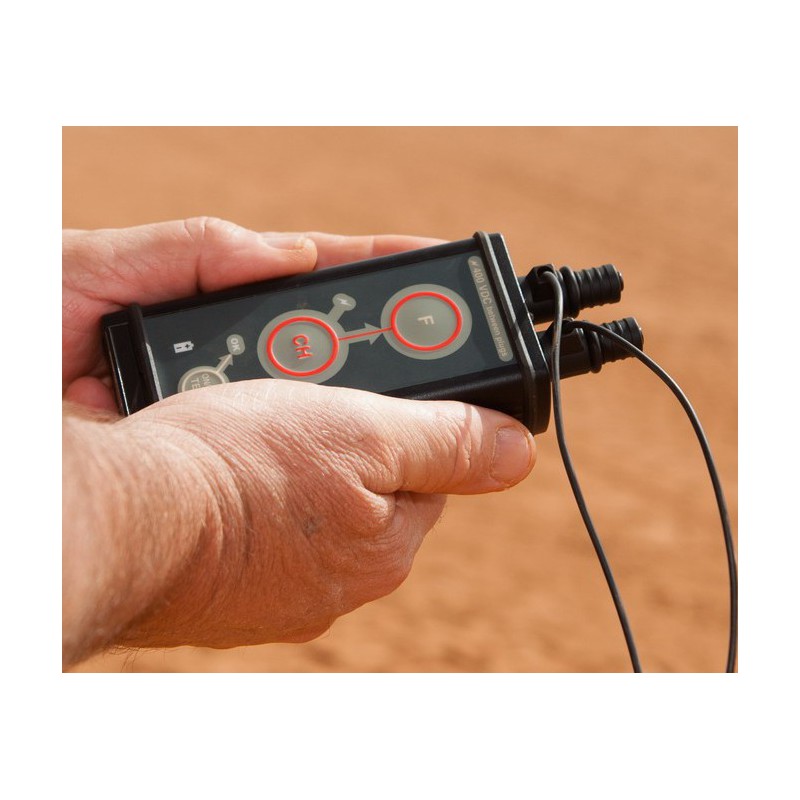

This device is very easy to use : pressing the CH button charges the capacitors; when the capacitors are charged, the firing can be triggered by pressing simultaneously the F button. If more power is needed, the capacitors can be charged to a higher voltage by keeping the CH button pressed for 3 more seconds.

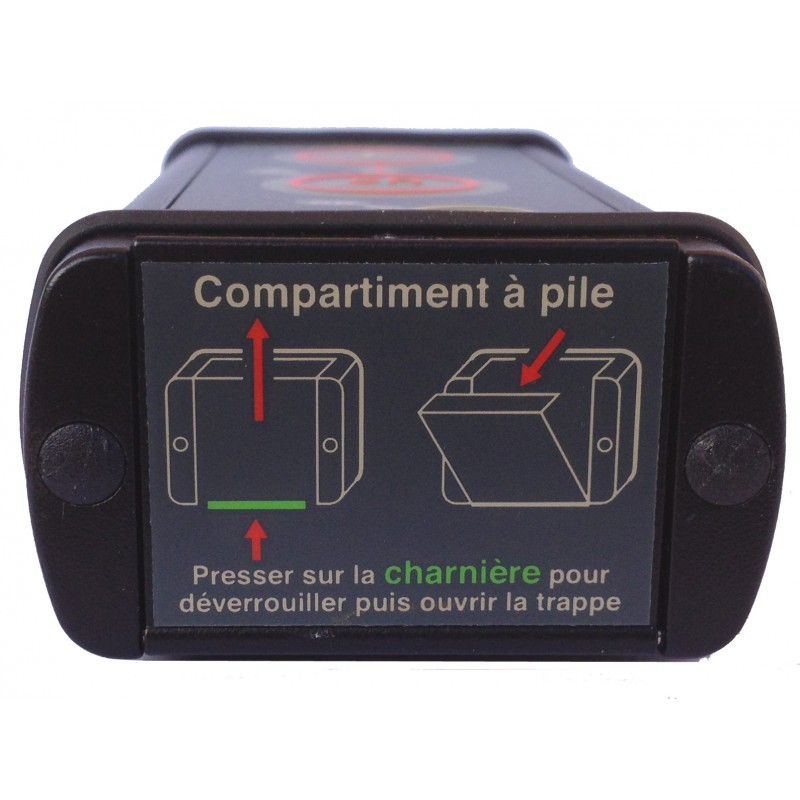

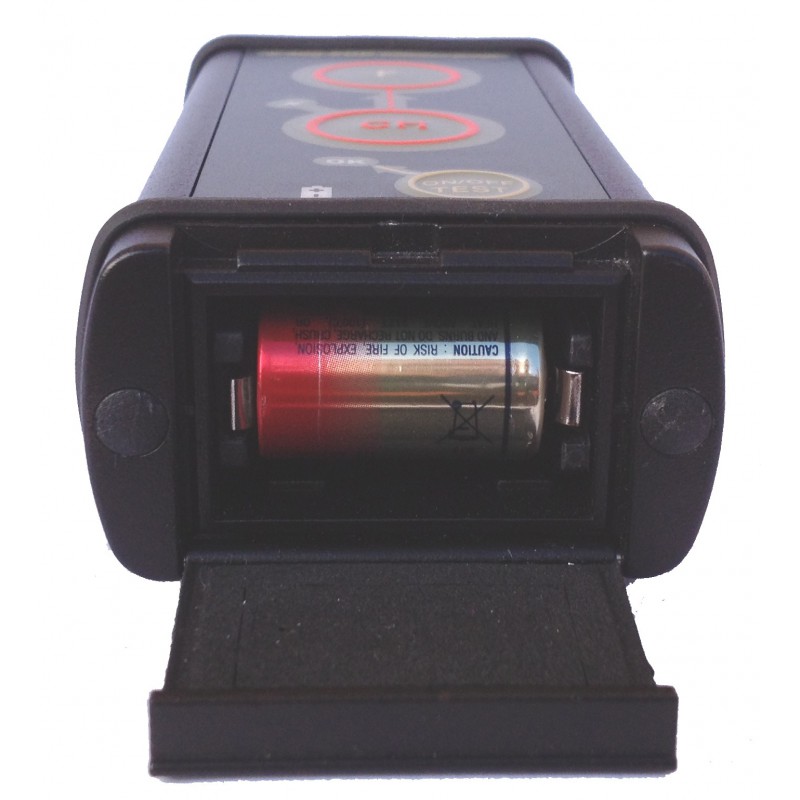

The exploder ATLAS-300 is supplied by a single lithium photo battery (cheap and widespread). A bicolour led indicates the state of the battery.

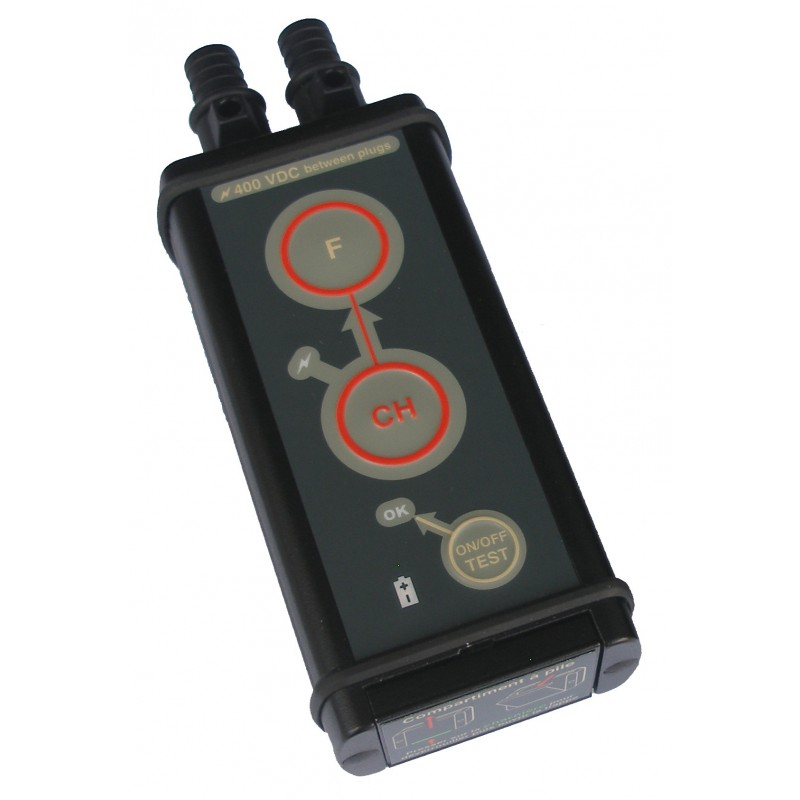

It is integrated in robust aluminium box, equipped with polyester control panel integrating the buttons and the lights. The leds’ luminosity level can be selected by the user and thus adapted to the work conditions (day / night).

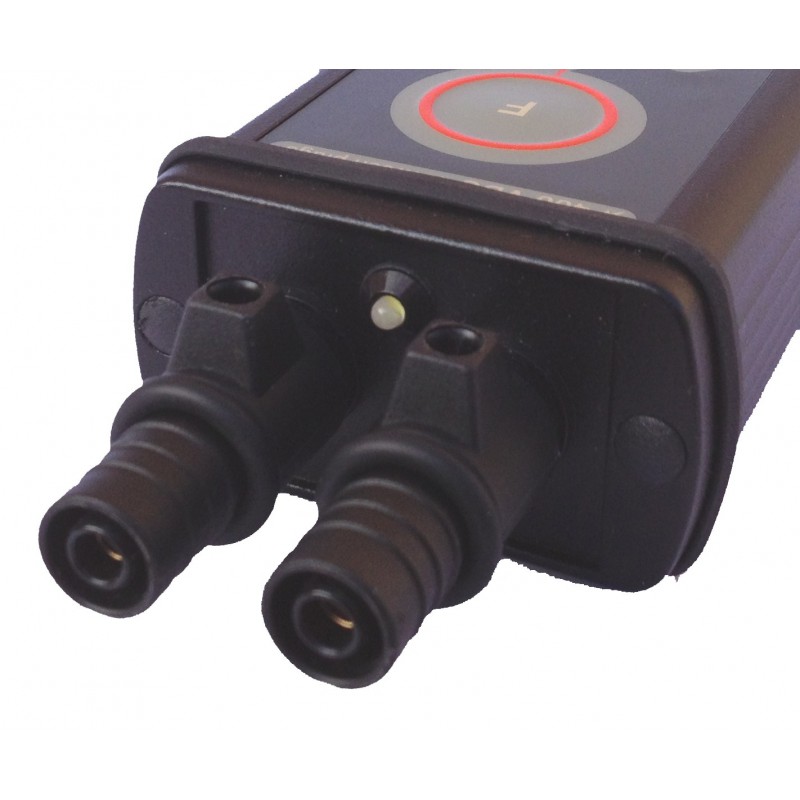

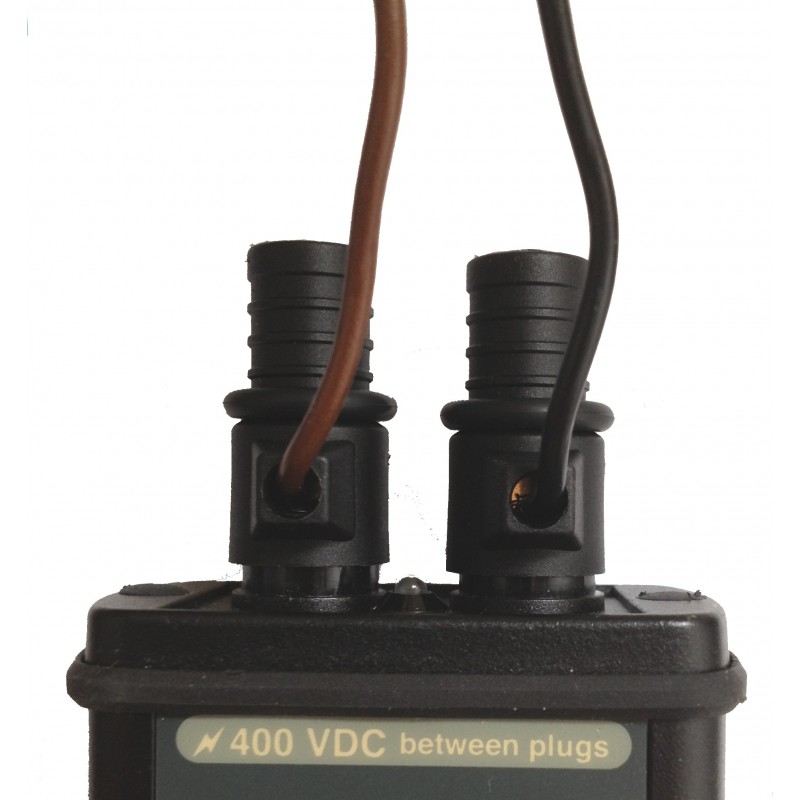

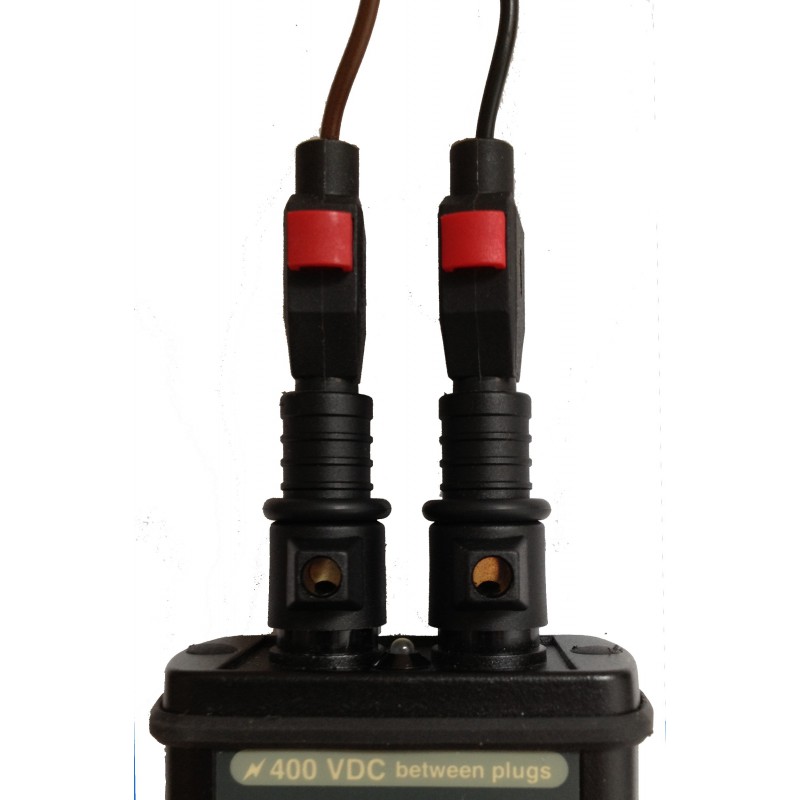

It features one firing output, equipped with safety sockets, in order to avoid that the user can be in contact with the dangerous output voltage.

ATLAS-300 exploder features many security levels : permanent shunt on the firing output, battery voltage monitoring, automatic discharge of the capacitors when the charge button is released, permanent measurement of the capacitors voltage, to fire 2 buttons must be pressed simultaneously, firing is allowed only when the capacitors are charged enough, safety sockets and plugs, monitoring by micro-controller, self-test of the control panel lights.

TECHNICAL DATA

Box : aluminium IP65
Dimensions : 150 x 60 x 35 mm approx.
Weight : 200 g
Power supply : CR2 lithium battery
Continuity test : integrated
Security levels : listed above
Compatibility F3 detonator : yes
Firing output : 1
Charging voltage : 320 V mini, 395 V maxi
Energy : 5 J mini, 7.5 J maxi
Charging time : 5 s
Autonomy : 200 firings at 20°C
Shunt on the output : internal shunt

MADE IN FRANCE
