Portable Magnetometer System MAGWALK

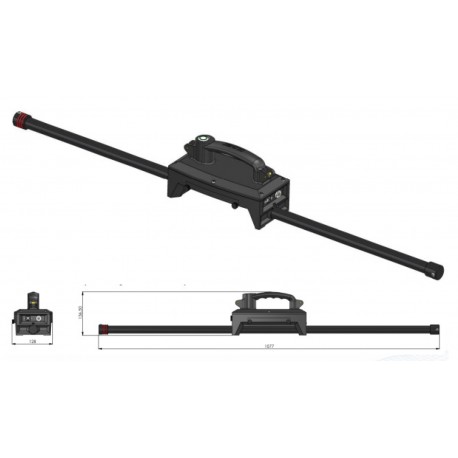

The MagWalk is an ultra lightweight portable magnetometer survey kit to be carried by one person by holding it transversely, longitudinal or upright aside the body.

The kit consists of a two built-in 3-axis fluxgates, a 1-button data logger with internal SD card, rechargeable batteries, an integrated or external GPS, as well as a serial live data output. The MagWalk device is made for small and mid size field surveys.

Combining the MagWalk with the SENSYS Remote Smartphone App allows 2 Hz live readings of all single axes of the sensors as well showing absolute values and graphs for insitu trials / investigations.

The MagDrone DataTool can be used to download and convert the raw data into various formats to make a follow up processing with SENSYS MAGNETO, MATLAB, GIS or other software as easy as possible.

TECHNICAL DATA

General Technical Data
Power Supply : 11.1 V; 1,950 mAh Li-Ion rechargeable
Operating Temperature : -20°C to +50°C
Weight / with Li-Ion battery : 1,470g / 1,600g
Overall power consumption : 500 mA
Sensor tube dimensions (W x D x H) : 1,070 x 24 mm

FGM3D/100 Fluxgate
Sensors : 2 pieces, laid horizontal, parallel
Specified measurement range : ±100,000 nT
Number of sensor axis : 3
Distance between sensor centre points : 1,000 mm
Noise level : @1Hz [pT/ (Hz)] :
10 pT < sensor M1 < 50 pT
10 pT < sensor M2 < 30 pT

Datalogger
Power : 50 mA
Sensor input : Internal wired
User Interface : On/Off + Start/Stop button; status LED
Survey mode : Recording when start/stop pressed
Sampling rate : 250 Hz (500Hz/1000Hz available on
request)
Live data output : 2 Hz (via Bluetooth 3.1)
Internal memory : 8 GB
Datalogger dimensions : 230 x 128 x 43/73 mm
External GPS input via serial cable
